| Specification | Unit | SAH4030 | SAH4042 | SAH4050 |
| The tilt angle | 45° | 45° | 45° | |
| Swing over bed diameter | mm | 400 | 400 | 400 |
| Max. swing over slide | mm | 120 | 120 | 220 |
| Rail width | mm | 286 | 403 | 363 |
| Z axis max. travel | mm | 400 | 420 | 500 |
| X axis max. travel | mm | 350 | 460 | 220 |
| Spindle end | A2-5 | A2-5 | A2-6 | |
| Taper of spindle hole | Morse 6 | 45 | Morse 6 | |
| Spindle through hole dia. | mm | 56 | 49 | 62 |
| Spindle speed | r/min | 100-5000 | 100-5000 | 100-4500 |
| The tailstock | No | No | Hydraulic pressure | |
| Tool post | Gang type | Gang type | 8 station servo turret | |
| Servo main motor | kw | 5.5 | 5.5 | 7.5 |
| Dimension | mm | 2080*1540*1515 | 2140*1600*1680 | 2560*1660*1800 |
| Weight | kg | 1500 | 1800 | 2000 |

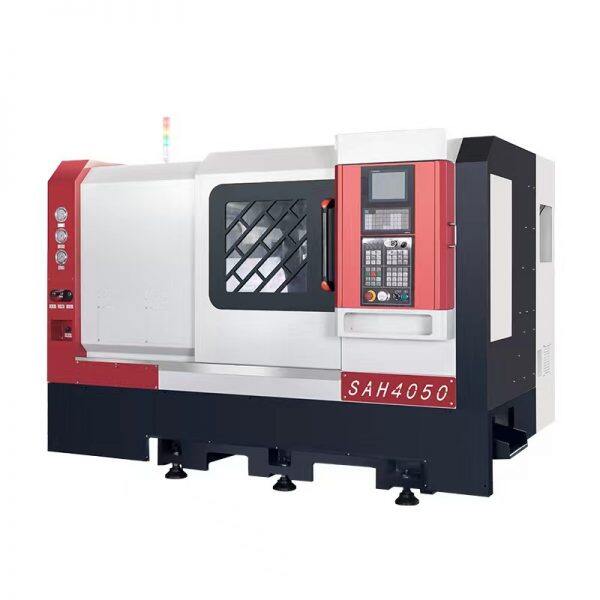

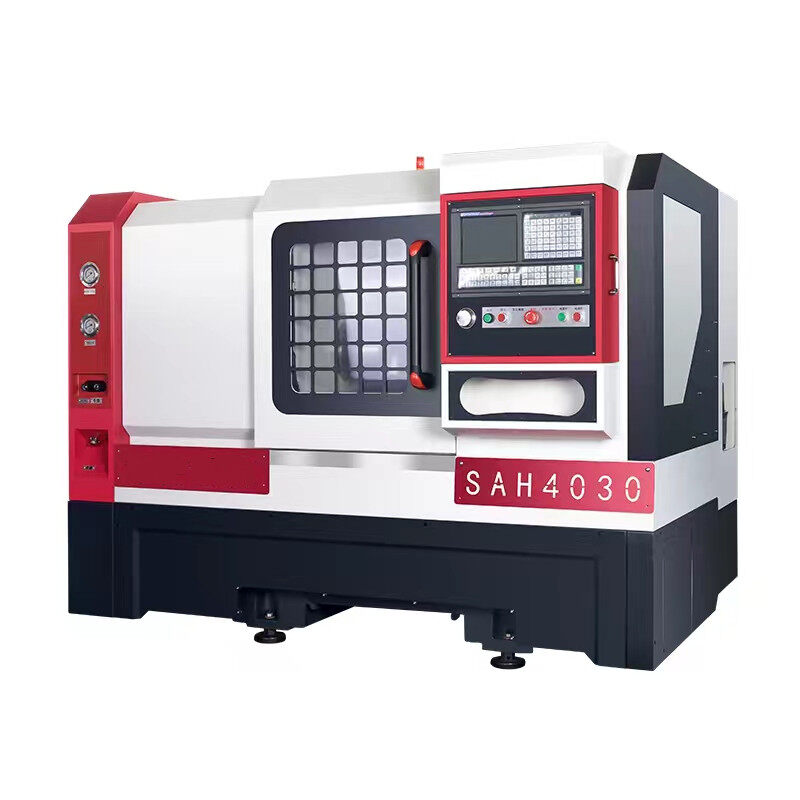

SAH4030 and SAH4042 are suitable for the short axis and the disk type parts process. SAH4050 is suitable for machining of shaft and disc type parts.
Machines with pleasing appearance, reasonable structure design, convenient operation, whole casting molding machine tool, stable structure, good rigidity, high precision, the characteristics of spindle unit adopts the factory research and development of servo electrical axis, with high speed and high torque at low speed, the characteristics of stable performance,X travel is big, Can install more gang type tool, power heads or turret to realize complex turning and milling.

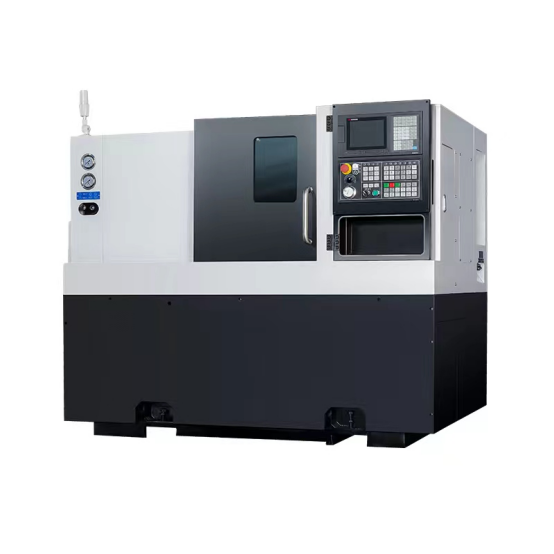

| Items | Specification | Unit | TK350 | TK500 | TK1000 |
| Processing capacity | Swing over bed | mm | Φ420 | Φ560 | Φ560 |
| Max.processing length | mm | 350 | 500 | 1000 | |
| Standard turning dia. | mm | 280 | 280 | 280 | |
| Max. turning dia. | mm | 300 | 400 | 400 | |
| Swing over cross slide | mm | 285 | 350 | 350 | |
| Spindle | Spindle nose | / | A2-6 | A2-6/A2-8 | A2-6/A2-8 |
| Spindle bore dia. | mm | 65 | 65/80 | 65/80 | |
| Max. bar capacity | mm | 50 | 50/66 | 50/66 | |
| Spindle speed | rpm | 50-4500 | 50-4500/4000 | 50-4500/4000 | |
| Spindle motor (continuous/15min. | kw | 7.5/11 | 11/15 | 11/15 | |
| Spindle output max. Torque | N.m | 117 | 235 | 235 | |
| Chuck size | Inch | 8 | 8 | 8 | |
| Axis feed | X/Z axis rapid traverse | m/min | 30 | 30 | 30 |
| X/Z axis travel | mm | 175/410 | 210/560 | 210/1050 | |
| X/Z axis motor power | kw | 1.8 | 1.8 | 1.8 | |
| Tailstock | Tailstock body travel | mm | (300) | 450 | 900 |
| Tailstock hole taper | (MT4#） | MT5# | MT5# | ||
| Tailstock center structure | (Live center） | Live center | Live center | ||
| Turret | Turret type | Servo 8 station turret | Servo 8 station turret | Servo 8 station turret | |
| Tool size | mm | 25*25/Φ40 | 25*25/Φ40 | 25*25/Φ40 | |
| Precision | Processing precision | IT6 | IT6 | IT6 | |
| X/Z axis positioning accuracy | mm | 0.008 | 0.008 | 0.008 | |
| X/Z axis repeatability | mm | 0.004 | 0.004 | 0.004 | |
| Others | Machine weight | kg | 3300 | 4000 | 4800 |
| Machine dimension | mm | 1980*1585*1750 | 2750*1860*1850 | 3570*1860*1850 |
45 degree inclined bed casting molding, good rigidity, important joint surface in a sequence processing, high precision.The integrated sleeve spindle is equipped with a large span headstock to ensure the accuracy of the spindle while also comprehensively reflecting the rigidity and shock resistance. Good mute effect, fast transposition speed, large locking torque, high precision tool change. Reasonable shape optimization, so that the center of gravity is lower, force and impact resistance is strong. Power tool holder module is optional for the whole system.
| Items | Specification | Unit | TL500 | TL1000 | TL1500 |
| Processing capacity | Swing over bed | mm | Φ720 | Φ720 | Φ720 |
| Max.processing length | mm | 500 | 1000 | 1500 | |
| Standard turning dia. | mm | 500 | 500 | 500 | |
| Max. turning dia. | mm | 630 | 630 | 630 | |
| Swing over cross slide | mm | 500 | 500 | 500 | |
| Spindle | Spindle nose | / | A2-8/A2-11 | A2-8/A2-11 | A2-8/A2-11 |
| Spindle bore dia. | mm | 80/104 | 80/104 | 80/104 | |
| Max. bar capacity | mm | 66/85 | 66/85 | 66/85 | |
| Spindle speed | rpm | 50-3000 | 50-3000 | 50-3000 | |
| Spindle motor (continuous/15min. | kw | 15/18.5 | 15/18.5 | 15/18.5 | |
| Spindle output max. Torque | N.m | 420 | 420 | 420 | |
| Chuck size | Inch | 10 | 10 | 10 | |
| Axis feed | X/Z axis rapid traverse | m/min | 30 | 30 | 30 |
| X/Zaxis travel | mm | 315/570 | 315/1070 | 315/1570 | |
| X/Z axis motor power | kw | 3 | 3 | 3 | |
| Tailstock | Tailstock body travel | mm | 450 | 850 | 1200 |
| Tailstock hole taper | MT5# | MT5# | MT5# | ||
| Tailstock center structure | Live center | small spindle | small spindle | ||
| Turret | Turret type | Servo 12 station turret | Servo 12 station turret | Servo 12 station turret | |
| Tool size | mm | 25*25/Φ40 | 25*25/Φ40 | 25*25/Φ40 | |
| Precision | Processing precision | IT6 | IT6 | IT6 | |
| X/Z axis positioning accuracy | mm | 0.01/0.012 | 0.01/0.015 | 0.01/0.02 | |
| X/Z axis repeatability | mm | 0.005/0.007 | 0.005/0.007 | 0.005/0.013 | |
| Others | Machine weight | kg | 6000 | 7500 | 9500 |
| Machine dimension | mm | 3560*2270*2100 | 4550*2270*2100 | 4700*2270*2200 |

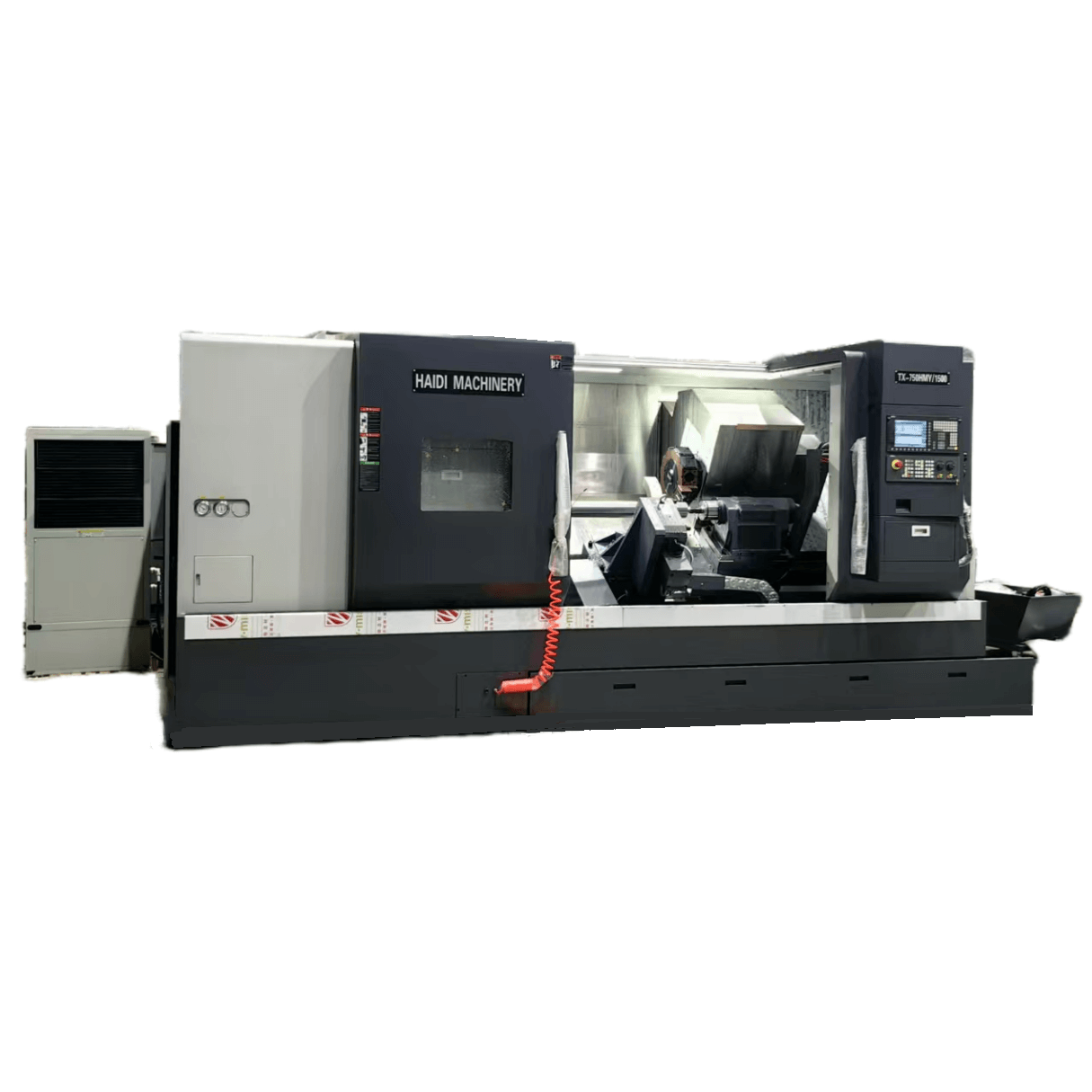

45 degree inclined bed casting molding, good rigidity. The important joint surface is processed in a sequence with high precision. Unit shaft headstock, motor through the belt wheel directly drive the spindle rotation, start fast, stable. The integral high rigidity, high speed sleeve spindle has the characteristics of low temperature rise, small thermal deformation and high precision
