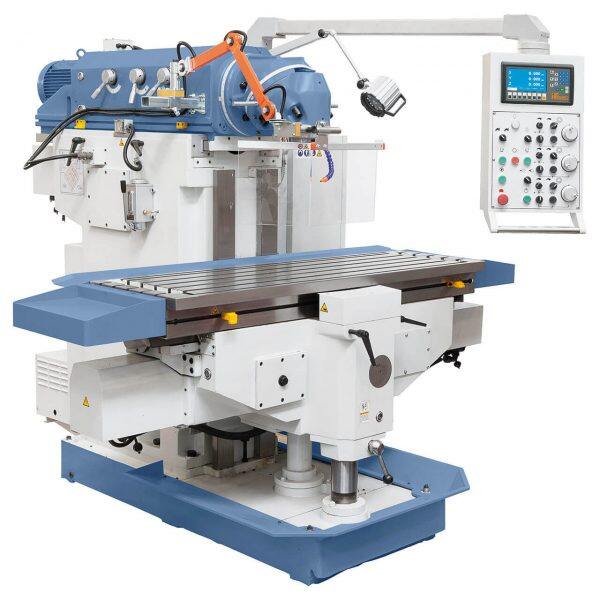

| Specification | Unit | XU6325W | XU6330W | XU6332W |
| Table size | mm | 1270*254 | 1370*305 | 1570*320 |
| T-slots(N/W/D) | 3/16/65 | 3/16/65 | 3/16/65 | |
| Longitudinal travel | mm | 750(850 manually) | 800 | 1000 |
| Cross travel | mm | 400 | 380 | 380 |
| Vertical travel | mm | 400 | 400 | 400 |
| Quill travel | mm | 127 | 127 | 127 |
| Distance between spindle and column | mm | 155-635 | 155-635 | 155-635 |
| Distance between spindle and table top | mm | 0-460 | 0-460 | 0-460 |
| Arm travel | mm | 400 | 500 | 500 |
| Milling head tilting, left&right/ front&back | 90°/45° | 90°/45° | 90°/45° | |
| Spindle taper | R8(V):NT40(H) | R8(V):NT40(H) | NT40(V):NT40(H) | |
| Spindle speed (V) | r/min | 66-4540 | 66-4540 | 66-4540 |
| Spindle speed (H) | r/min | 40-1300 | 40-1300 | 40-1300 |
| Power of spindle motor | kw | 2.2(V):3(H) | 2.2(V):3(H) | 3.75(V):3(H) |
| Max.table safety load | kg | 350 | 350 | 350 |
| Weight | kg | 1380 | 1550 | 1750 |
| Dimension | mm | 1750*1530*2340 | 1750*1650*2340 | 1950*1650*2340 |
The spindle of turret milling machine can rotate at high speed and wide range. The spindle needle can be automatically fed. Horizontal milling 12 variable speed can be changed according to machining requirements. The machine has beautiful appearance and reasonable structure design. It is an ideal universal equipment for metal processing. Can also be equipped with digital display system according to customer requirements.

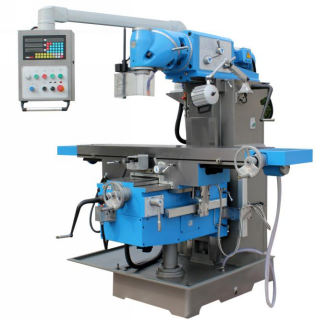

| Specification | Unit | XL6230 | XL6230A | XL6230C | |
| Table size | mm | 1270*300 | 1370*300 | 1370*300 | |
| X/Y/Z travel | mm | 720*280*400 | 820*300*400 | 1000*360*400 | |
| Max rotary angle of table | ° | Optional ±45° | |||
| Max table weight | kg | 300 | |||
| T-slots（No./width/pitch） | mm | 3*14*80 | |||
| Spindle speed series and range | rpm | V 45-1660（11 steps） | |||
| Distance between spindle nose and table surface | mm | 100-500 | |||
| Spindle taper | 7:24 IS040, | ||||
| Table rapid speed（X/Y/Z） | mm | 1335、1335、1000 | |||
| Table feed（X/Y/Z） | mm | X、Y:30-830, Z:23-625 | |||
| Main motor power | kw | 3Kw | |||
| Feed motor | kw | 3 axes using a 10N.m servo motor, auto feed and change speeds variably
(3 axes driven by one servo motor) |
|||
| Dimension | mm | 1730*1760*1700 | 1830*1760*1700 | 1830*1760*1700 | |
| Machine weight | kg | 1550 | 1700 | 1700 | |
1.Finely graduated feeds in all axis, driven by servo motor, it is a patent product in our company.
2.Complete with rapid feed in x, y and z axis to reduce downtime.
3.Precision-ground guide ways with hardened surfaces for long-term accuracy and wear-resistance.
