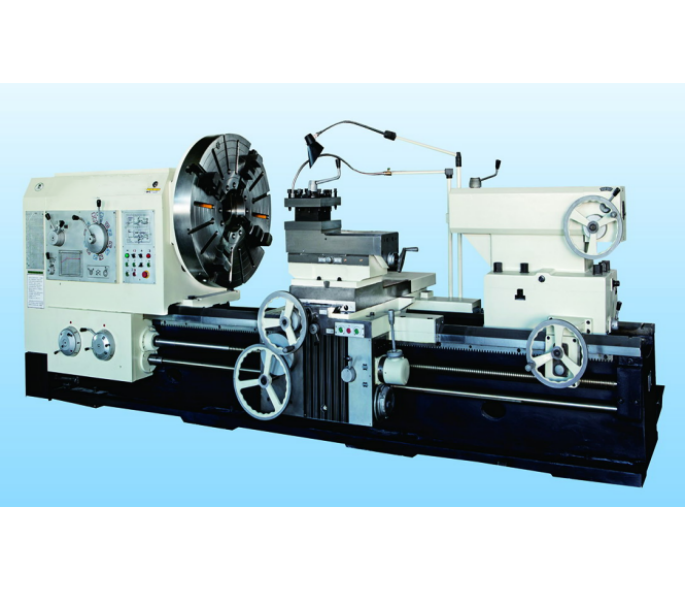

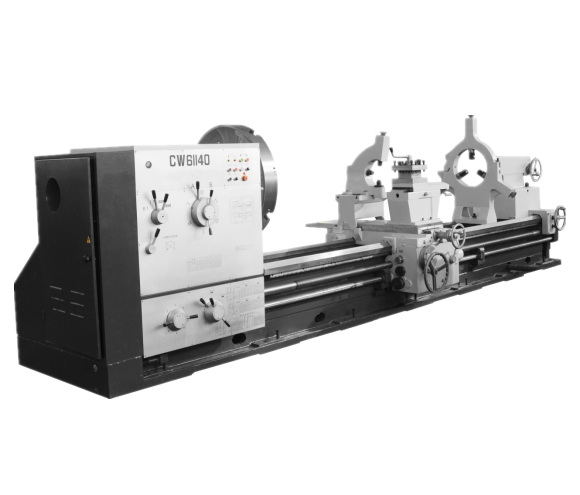

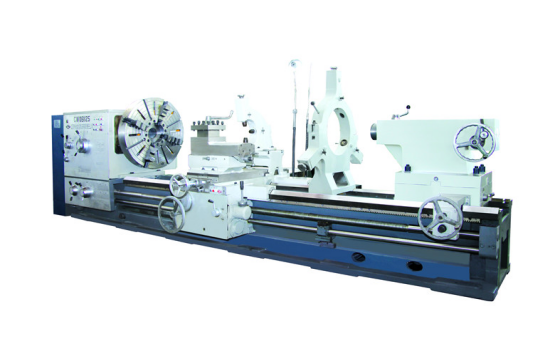

| Item | CW61100B | CW61125B | CW61140B | CW61160B | ||||||||
| Swing over bed diameter | 1000mm | 1250mm | 1400mm | 1600mm | ||||||||
| Width of bed | 755mm | 755mm | ||||||||||
| Max. work piece weight | 6000kg | 6000kg | ||||||||||
| Center distance | 1500/3000/5000/6000/8000mm | 1500/3000/5000/6000/8000mm | ||||||||||
| Max. turning length | 1350/2850/4850/5850/7850mm | 1300/2800/4800/5800/7800mm | ||||||||||
| Max.swing over cross slide | 615mm | 865mm | 1000mm | 1200mm | ||||||||
| Spindle hole diameter | ∮130mm | ∮130mm | ||||||||||
| Spindle taper | 1:20 Metric No. 140 | 1:20Metric No. 140 | ||||||||||
| Spindle speeds | 21 kinds 3.15-315r/min | 21 kinds 3.15-315r/min | ||||||||||
| Transverse stroke of lower tool post | 630mm | 630mm | ||||||||||
| Travel of up tool post | 300mm | 325mm | ||||||||||
| Tool shank section | 45*45mm | 45*45mm | ||||||||||
| Sleeve diameter | ∮160mm | ∮160mm | ||||||||||
| Sleeve taper | Morse 6 | Morse 6 | ||||||||||
| Sleeve travel | 300mm | 300mm | ||||||||||
| Main motor | 22kw | 22kw | ||||||||||
| Rapid feed motor | 1.5kw | 1.5kw | ||||||||||
| Workpiece length | 1500mm | 3000mm | 5000mm | 6000mm | 8000mm | 1500mm | 3000mm | 5000mm | 6000mm | 8000mm | ||
| Machine length | 4600mm | 6100mm | 8100mm | 9100mm | 11100mm | 4600mm | 6100mm | 8100mm | 9100mm | 11100mm | ||
| Width | 2150mm | 2275mm | 2350mm | 2450mm | ||||||||
| Height | 1700mm | 1825mm | 1900mm | 2000mm | ||||||||
| Machine weight | 8.2/10.2t | 10.7/11.9t | 13/14.5t | 13.7/15.4t | 15.7/17.9t | 11/11.9t | 12.8/13.9t | 15.6/16.9t | 16.6/18t | 19.2/20.8t | ||

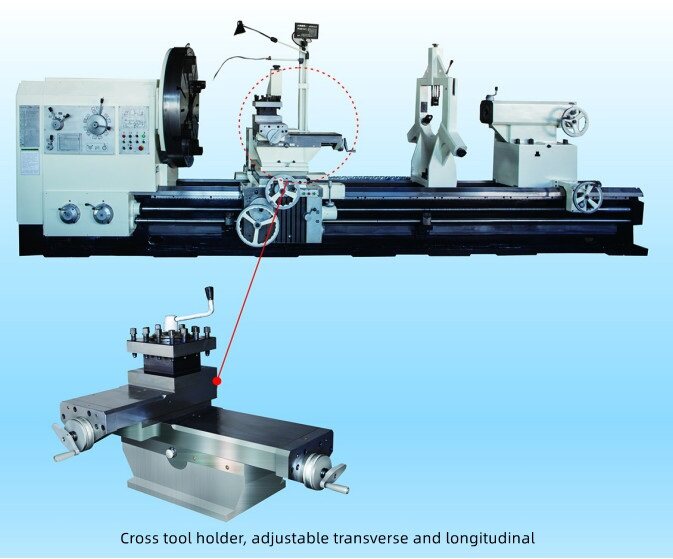

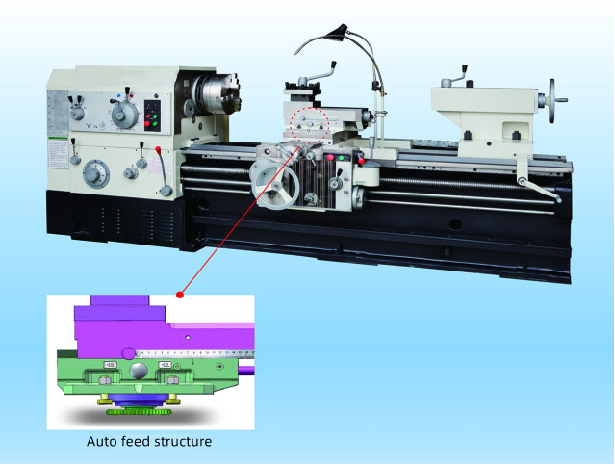

The upper tool rest can be used to cut the short taper individually. Also available on the tool rest and longitudinal feed with motor turning long taper. In addition, it can also undertake drilling, nesting, boring and other processes.
The machine can work steel, cast iron and non-ferrous metals and other materials.
The dimensional accuracy of parts processed by this machine tool can reach IT7 level, and can obtain smaller surface roughness.
This machine tool is also suitable for small and medium-sized batch shaft, disc parts of the inner and outer cylindrical surface, cone, thread, drilling, reaming and curve parts such as turning processing. The machining accuracy can reach IT7, and the surface roughness of the workpiece can reach Ra1.6.
The scope of machine tool processing should be determined according to machine tool specifications and technical parameters. Processing beyond machine specifications and allowed parameters is prohibited. Otherwise, machine tools will be damaged or even personal injury. Refer to the technical parameters of the machine tool for the processing scope.
