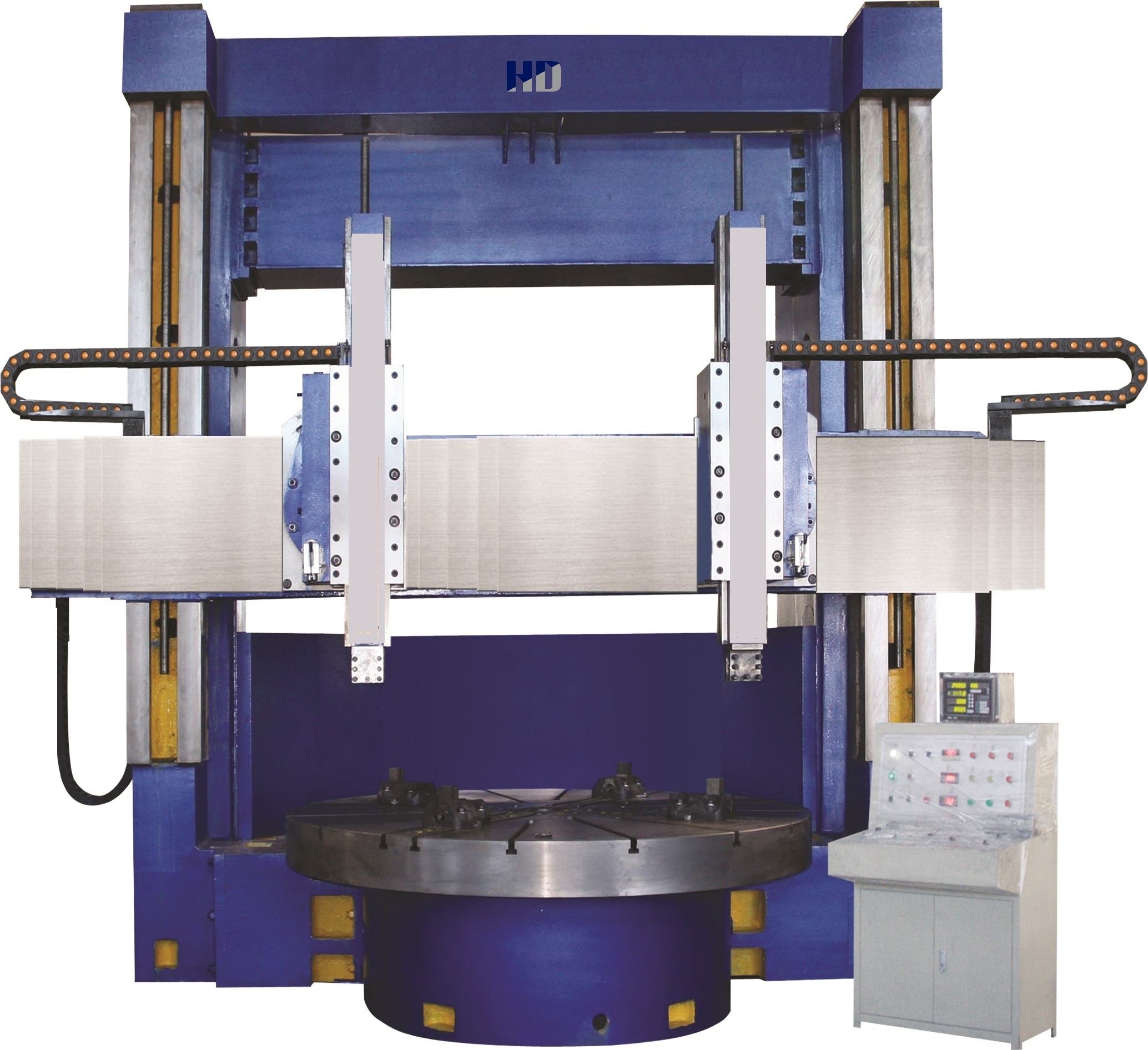

| Specification | Unit | C5225 | C5232 | C5235 | C5240 | C5250 | C5263 |
| Max. cutting diameter | mm | 2500 | 3200 | 3500 | 4000 | 5000 | 6300 |
| Max. cutting height | mm | 1600/
2500 |
1600/
2500 |
1600/
2000 |
1600/
2500 |
2000/
3150 |
3150/
4000 |
| Worktable diameter | mm | 2250 | 2830 | 2830 | 2830/
3600 |
4000/
4500 |
4500/
5700 |
| Max. Loading weight | t | 10/16/20 | 10/16/20 | 20 | 20/32/50 | 32/50 | 50/100 |
| Worktable max. torque | kn.m | 63 | 63 | 63 | 63 | 70 | 100 |
| Worktable speed range | rpm | 2-63 | 2-63 | 2-63 | 0.5-40 | 0.5-40 | 0.5-38 |
| Worktable step | step | 16 | 16 | 16 | 16 | 16 | 16 |
| Right tool post cutting force | kn | 35 | 35 | 35 | 35 | 35/50 | 50/80 |
| Left tool post cutting force | kn | 28 | 28 | 28 | 28 | 28/40 | 40/70 |
| Tool post horizontal travel | mm | 1400 | 1700 | 1900 | 2150 | 2765 | 3450 |
| Tool post vertical travel | mm | 1000/
1400 |
1000/
1250 |
1000/
1250 |
1000/
1400 |
1250/
1600 |
1600/
2000 |
| Crossbeam travel | mm | 1250/
2150 |
1250/
2150 |
1250/
1650 |
1250/
2150 |
1500/
2650 |
2650/
3500 |
| Main motor | kw | 55 | 55 | 55 | 55 | 55/75 | 75/110 |
| Machine weight | t | 32/34/36 | 39/42 | 40/43 | 43/45/48 | 60/65/70 | 118/178 |
| Lathe dimension
(L*W*H) |
mm | 5180*4700*4800 | 6000*4860*5000 | 6400*5050*5200 | 6900*5200*5700 | 9200*5800*5800 | 11500*7500*9300 |

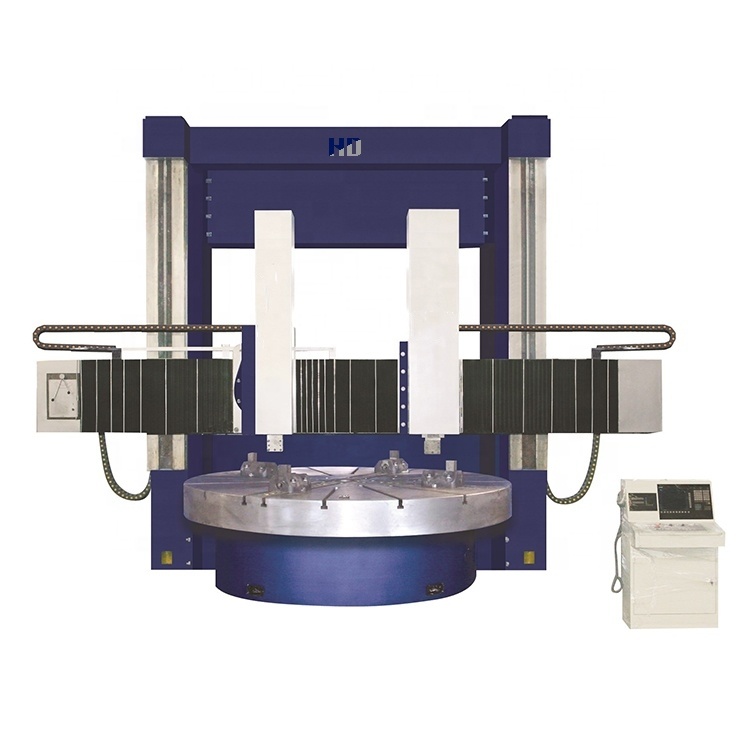

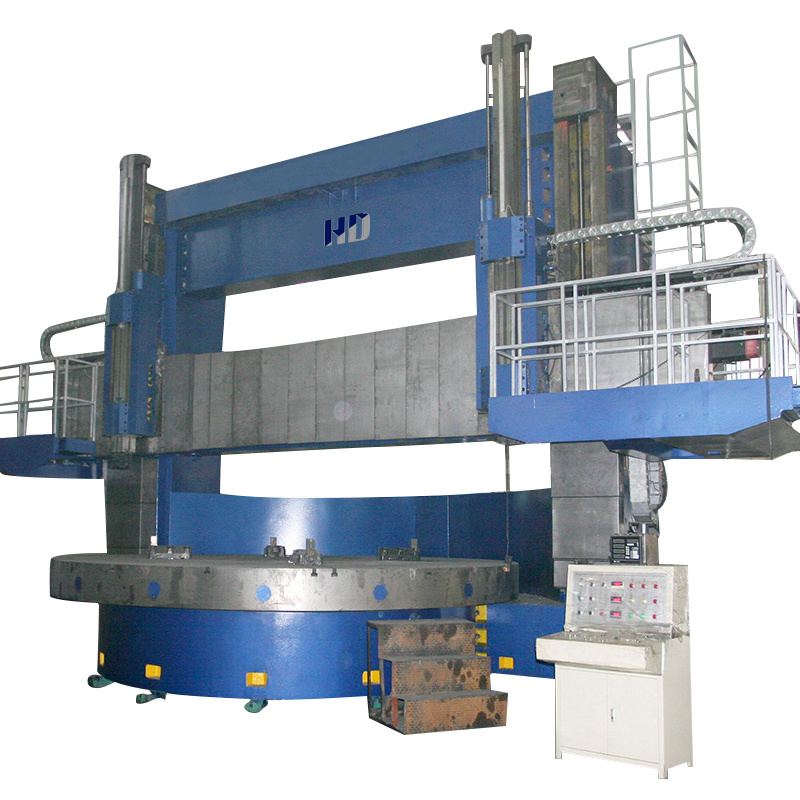

Double column vertical lathes are versatile, powerful and highly efficient machines that are widely used in the manufacturing industry. They are known for their ability to handle heavy workpieces with ease and precision, making them ideal for a wide range of applications.
Double column vertical lathe is its robust design. The two columns provide excellent stability and rigidity, ensuring that the machine remains accurate and reliable even during heavy cutting operations. Additionally, the large table size allows for flexibility in terms of workpiece size and shape, making it easier to handle a wide range of materials and tasks.
Double column vertical lathe include the ability to perform a variety of operations on single workpiece, reducing the need for multiple machines and setup times. This helps to streamline the manufacturing process, improve efficiency and reduce costs. The machine’s high precision and ability to handle large workpieces also means that it can be used for a variety of applications, from aerospace and defense to automotive and construction.
Another advantage of the double column vertical lathe is its ease of use. With advanced control systems and intuitive interfaces, operators can quickly and easily program the machine to perform specific tasks, reducing the risk of human error and improving productivity.
Overall, the double column vertical lathe remains a popular choice for manufacturers looking for a versatile and powerful machine capable of handling heavy workpieces with ease and precision. With advances in technology and ongoing innovations in design, the future looks bright for this essential piece of manufacturing equipment.
