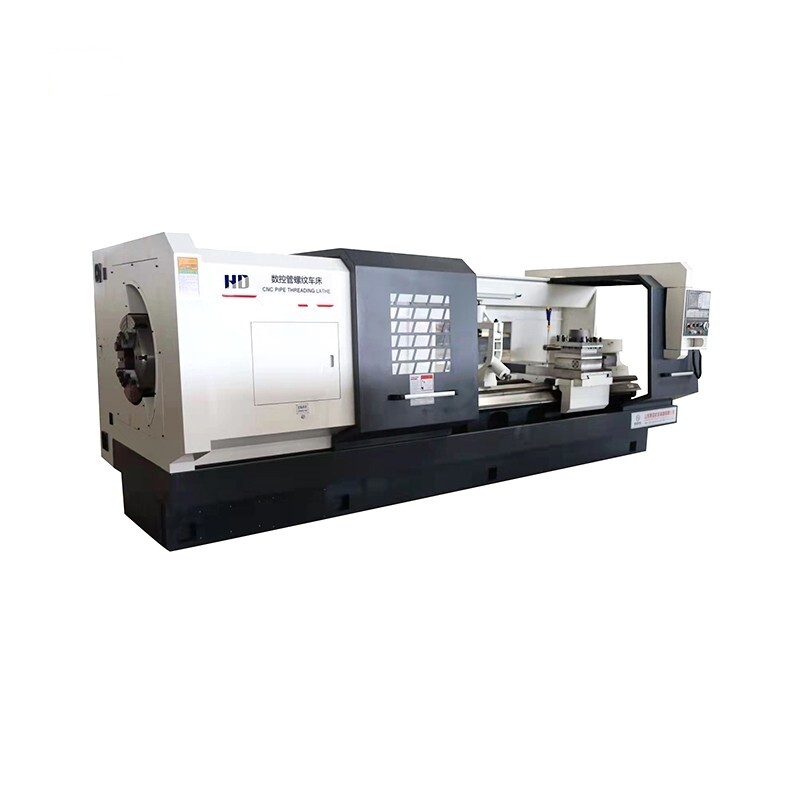

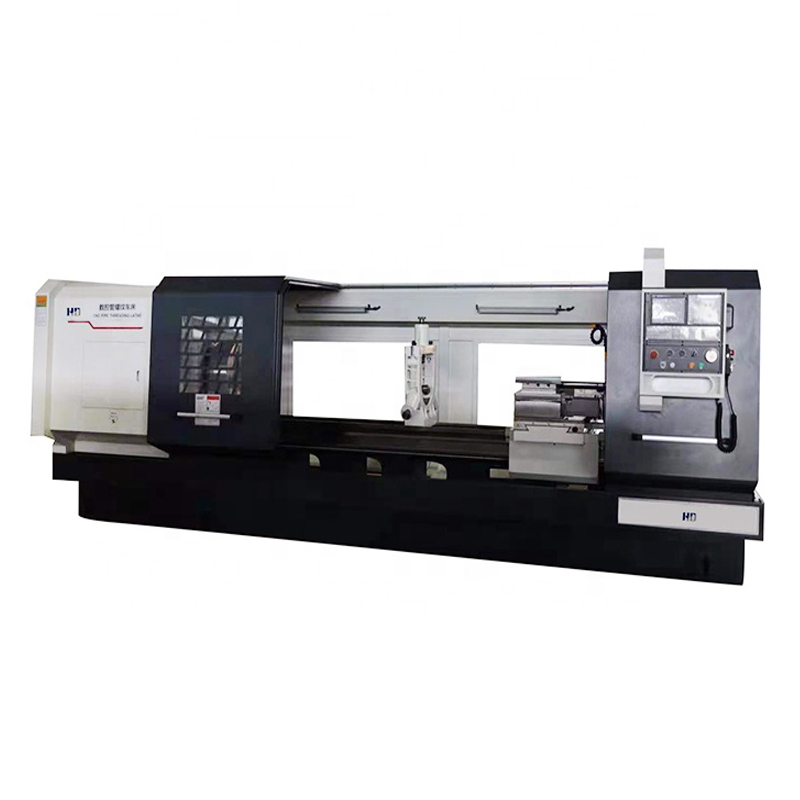

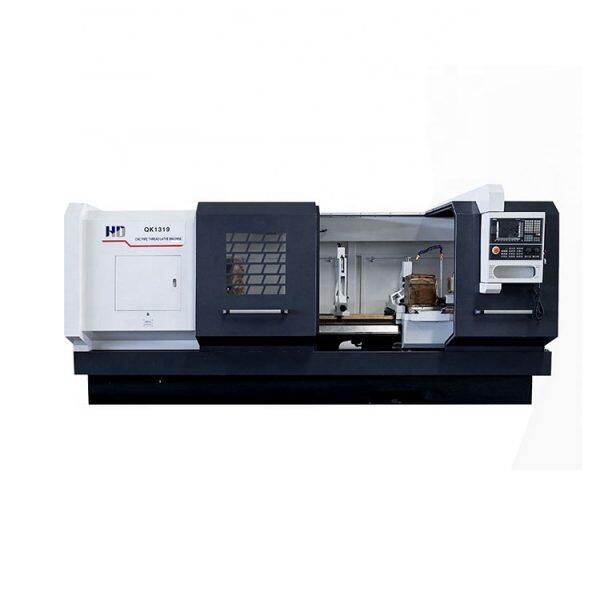

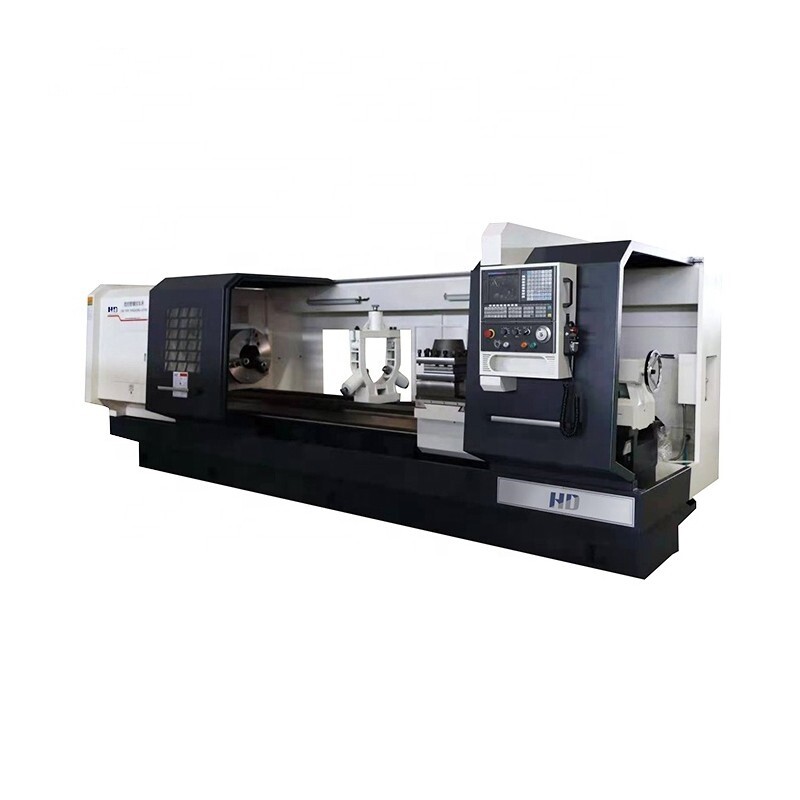

| Specification | Unit | QK1313 | QK1319 | QK1322 | QK1325 | |
| Max. swing over bed diameter | mm | 630 | 630 | 670 | 800 | |
| Max. swing over cross slide diameter | mm | 330 | 330 | 370 | 540 | |
| Length of workpiece | mm | 1500/3000 | ||||
| Width of bed | mm | 550 | 550 | 550 | 550 | |
| Spindle bore | mm | 135 | 200 | 225 | 255 | |
| Power of spindle motor | kw | 11 | 11 | 11 | 11 | |
| Mode of spindle speed | Two gears, stepless in gears | |||||
| Spindle speed range | r/min | L: 0-130 | L: 25-120 | L: 25-120 | L: 15-100 | |
| H: 130-800 | H: 100-500 | H: 100-500 | H: 100-350 | |||
| X/Z axis travel | mm | X:350 Z:1250 | ||||
| X/Z rapid traverse speed | mm/min | 4000 | 4000 | |||
| X axis motor | Speed | r/min | 1500 | 1500 | 1500 | 1500 |
| Torque | N.m | 10 | 10 | 10 | 10 | |
| Power | kw | 1.5 | 1.5 | 1.5 | 1.5 | |
| Z axis motor | Speed | r/min | 1500 | 1500 | 1500 | 1500 |
| Torque | N.m | 15 | 15 | 15 | 15 | |
| Power | kw | 2.3 | 2.3 | 2.3 | 3.8 | |
| Tailstock quill | Diameter | mm | 100 | |||
| Travel | mm | 250 | ||||
| Taper | Morse 5 | |||||
| Turret | Type | Vertical four station | ||||
| Chuck | K11-380 3 jaw chuck | K11-500 3 jaw chuck | K72-630 4 jaw chuck | |||
| CNC control system | GSK, FANUC, SIEMENS | |||||
| Positioning accuracy | mm | 0.02 | ||||
| Repeatability | mm | 0.01 | ||||
| Overall dimension | mm | 3700*1755*1800 | 3700*1755*1800 | 3700*1755*1800 | 3700*2000*1800 | |
| Net weight | T | 4 | 4.6 | 5.2 | 6 | |
| Specification | Unit | QK1327 | QK1330 | QK1335 | QK1343 | QK1353 | |
| Max. swing over bed diameter | mm | 800 | 800 | 1000 | 1000 | 1250 | |
| Max. swing over cross slide diameter | mm | 480 | 480 | 610 | 610 | 860 | |
| Max. length of workpiece | mm | 1500/3000 | |||||
| Width of bed | mm | 600 | 600 | 755 | 755 | ||
| Spindle bore | mm | 280 | 305 | 360 | 440 | 540 | |
| Power of spindle motor | kw | 15 | 15 | 22 | 22 | ||
| Mode of spindle speed | Two gears, stepless in gears | ||||||
| Spindle speed range | r/min | L: 20-100 | L: 20-100 | L: 30-130 | L: 23-120 | L: 23-120 | |
| H: 100-300 | H: 100-300 | H: 65-260 | H: 65-258 | H: 65-258 | |||
| X/Z axis travel | mm | X:450 Z:1250 | X:450 Z:1250 | X:550 Z:1250 | X:570 Z:1250 | ||
| X/Z rapid traverse speed | mm/min | 4000 | 4000 | 1400 | 2000 | ||
| X axis motor | Speed | r/min | 1500 | 1500 | 1500 | 2000 | |
| Torque | N.m | 15/18 | 15/18 | 18 | 22 | ||
| Power | kw | 2.8 | 2.8 | 2.8 | 2.8 | ||
| Z axis motor | Speed | r/min | 1500 | 1500 | 1500 | 2000 | |
| Torque | N.m | 18/22 | 18/22 | 22 | 30 | ||
| Power | kw | 3.8 | 3.8 | 3.5 | 3.5 | ||
| Tailstock quill | Diameter | mm | 100 | 100 | 140 | 160 | |
| Travel | mm | 250 | 250 | 300 | 300 | ||
| Taper | Morse 6 | Morse 6 | Morse 6 | Morse 6 | |||
| Turret | Type | Vertical four station | |||||
| Chuck | K72-630 4 jaw chuck | K72-630 4 jaw chuck | 780 4 jaw chuck | 1000 4 jaw chuck | 4 jaw chuck | ||
| CNC control system | GSK, FANUC, SIEMENS | ||||||
| Positioning accuracy | mm | 0.02 | 0.02 | 0.02 | 0.02 | 0.04 | |
| Repeatability | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.02 | |
| Overall dimension | mm | 4000*2100*2100 | 4000*2100*2100 | 5000*2200*2100 | 5000*2200*2100 | 5000*2800*2200 | |
| Net weight | T | 7 | 7.5 | 12 | 14 | 18 | |
Feed system, the bed saddle along the bed in the direction of the Z axis movement is driven by the Z axis servo motor through the coupling directly driven ball screw; The tool rest on the saddle moves in the direction of the X axis, which is driven by the ball screw drive driven by the X axis servo motor through the direct connection of the coupling. The spindle of machine tool should be designed with high precision and high rigidity. Guide form: horizontal bed, mountain – plane combination guide form.
Lubrication of the headbox is provided by the oil pump system in the box. The saddle and slide plate are lubricated by the lubrication system.
